NUGSMASHER

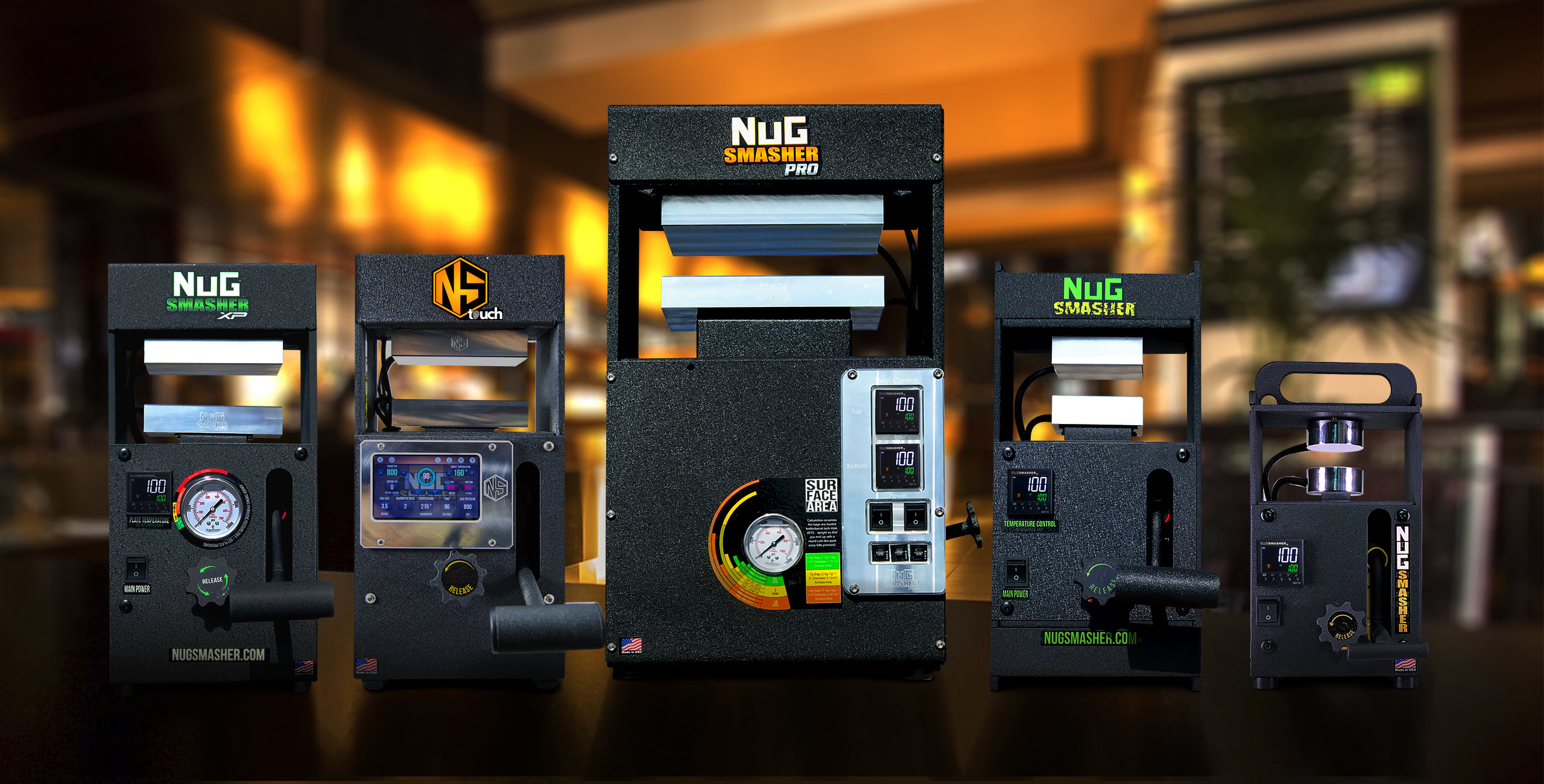

We introduce to you the Nugsmasher product lineup available in four different versions. The Nugsmasher Pro, The Nugsmasher XP, The Nugsmasher and The Nugsmasher Mini! Nugsmasher machines vary between 2, 12 and 20 tons of pressure. All of the machines can be manually operated to achieve heat plate pressure. The Nugsmasher Pro also has pneumatic plate function. Nugsmasher is the Rosin extraction machine of choice for both home users and high volume production facilities. The standard system is a manually operated 12 Ton Rosin Press featuring a 4" x 4" pressing area while the Pro version is a 20 Ton Pneumatic (or manually) operated Rosin Press boasting a huge 7" x 10" pressing area. The Mini version is great for travel and offers a 2.5" round or 2.5” x 2.5” square pressing area. All versions are constructed with solid steel and T6 6061 aluminum and are fabricated and assembled from start to finish in-house at the Nugsmasher factory in Corona, CA. We back each Nugsmasher with an unmatched LIFETIME WARRANTY on every component of the system and we are available to support our customers by phone or in person during normal business hours and via email and social media on weekends and after hours.

We have the industries best customer service and we are devoted to continuous improvement.



CHOOSE FROM 4 VERSIONS

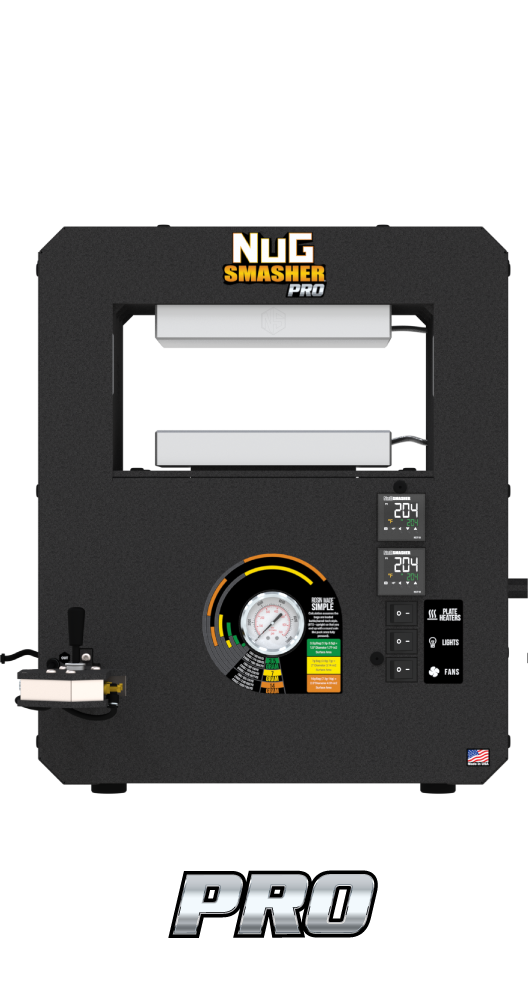

Pro Smasher Rosin Press

Pro Version

XP Smasher Rosin Press

XP Version

  • Large 4" x 6" Plates
  • 4 x 160W Heaters
  • Hydraulic Pressure Gauge
  • Small Footprint
  • Press up to 28g per press
  • Works with our 3.5 gram Bags
  • Works with our 7 gram Bags
  • Works with our 14 gram Bags
Standard Smasher Rosin Press

Standard Version

Mini Smasher Rosin Press

Mini Version

  • 2.5" Plates
  • 2 x 70W Heaters
  • Lightweight for Travel
  • Press up to 3.5g per press
  • Works with our 3.5 gram Bags

NUGSMASHER FEATURES

The Nugsmasher family of presses are purpose built machines exclusively designed for Rosin extraction. After years of researching and testing, our Rosin connoisseurs together with our design and engineering team, have put together an impressive set of features needed for the perfect and consistent extraction process. Read more about some of the features below…

Plug-N-Play

The Nugsmasher product line-up are all Plug-N-Play presses. Simply plug into your power supply and turn unit on and you are ready to start extracting! The Nugsmasher Pro version has a built in pneumatic function as well.

Circuit Protection

The Nugsmasher is a well-equipped machine requiring multiple power circuits to make everything run properly. With safety in mind, our electrical engineers have routed each of the 3 sub-circuits as well as the primary power circuit through high quality, resettable circuit breakers which are neatly mounted to the front panel for easy monitoring and access to reset them if needed.

Temp Controls

The Nugsmasher product line-up offers precise temperature control of the heat plates. Just set your desired temperature and the controllers will bring the plates to temp and keep them consistent throughout your pressing session.





Built-In Pressure Gauge

Increase your chances of having repeatable results by ensuring you are pressing the same each time you load your press. The built-in gauge allows you to find the perfect amount of pressure for your material and apply the same amount on your next press with ease. *Gauge only available on Nugsmasher Pro and Nugsmasher XP.

Thermally Isolated Heat Plates

The top plates of the Nugsmasher line-up are thermally isolated. This design minimizes undesired heat transfer away from your pressing area. This helps maintain efficiency as well as maintaining your desired temps on the plates.

Illuminated Work Area

Both the Nugsmasher PRO and Nugsmasher XP features 2 LED's lights focused on the pressing area and have this built in option standard.







Steel and Aluminum Construction

Solid interlocked USA structural steel creates the frame of the Nugsmasher product line-up offering well beyond the individual pressing abilities. Aircraft grade aluminum is fully CNC machined in-house and is used for the pressing plates.


Nugsmasher PRO
  • Frame .5” A36
  • Plates 1.5” 6061
Nugsmasher XP
  • Frame .375” A36
  • Plates 1.25” 6061
Nugsmasher
  • Frame .375” A36
  • Plates 1.25” 6061
Nugsmasher Mini
  • Frame .25” A36
  • Plates 1.25” 6061

Heat Plates

No other press offers the flexibility in pressing preference found with the Nugsmasher line-up. Our customers have spoken and we’ve listened! Providing the proper machine and accessory for the master extractor’s every need.


Nugsmasher PRO
  • 20 Tons of Pressure
  • 7 x 10”Heat Plates
Nugsmasher XP
  • 12 Tons of Pressure
  • 4 x 6” Heat Plates
Nugsmasher
  • 12 Tons of Pressure
  • 4 x 4” Heat Plates
Nugsmasher Mini
  • 2 Tons of Pressure
  • 2.5” Round or Square Heat Plates

Heaters

The Nugsmasher product line-up is equipped with specific purpose designed heat cartridges on each of the top and bottom plates allowing for a quick start-up, more even heat disbursement, and better maintained target temps throughout your pressing session.


Nugsmasher PRO
  • 3 x 160w Top
  • 3 x 160w Bottom
Nugsmasher XP
  • 2 x 160w Top
  • 2 x 160w Bottom
Nugsmasher
  • 1 x 160w Top
  • 1 x 160w Bottom
Nugsmasher Mini
  • 1 x 70w Top
  • 1 x 70w Bottom

NUGSMASHER ACCESSORIES

After years of vigorous research and testing, our Rosin connoisseurs together with our design team and engineers, have come up with an impressive list of purpose built accessories. Our accessories are designed to specifically work with our extraction machines making the process simple and ensuring the perfect consistent extraction.

Rosin Collection Plates

Extraction Bags

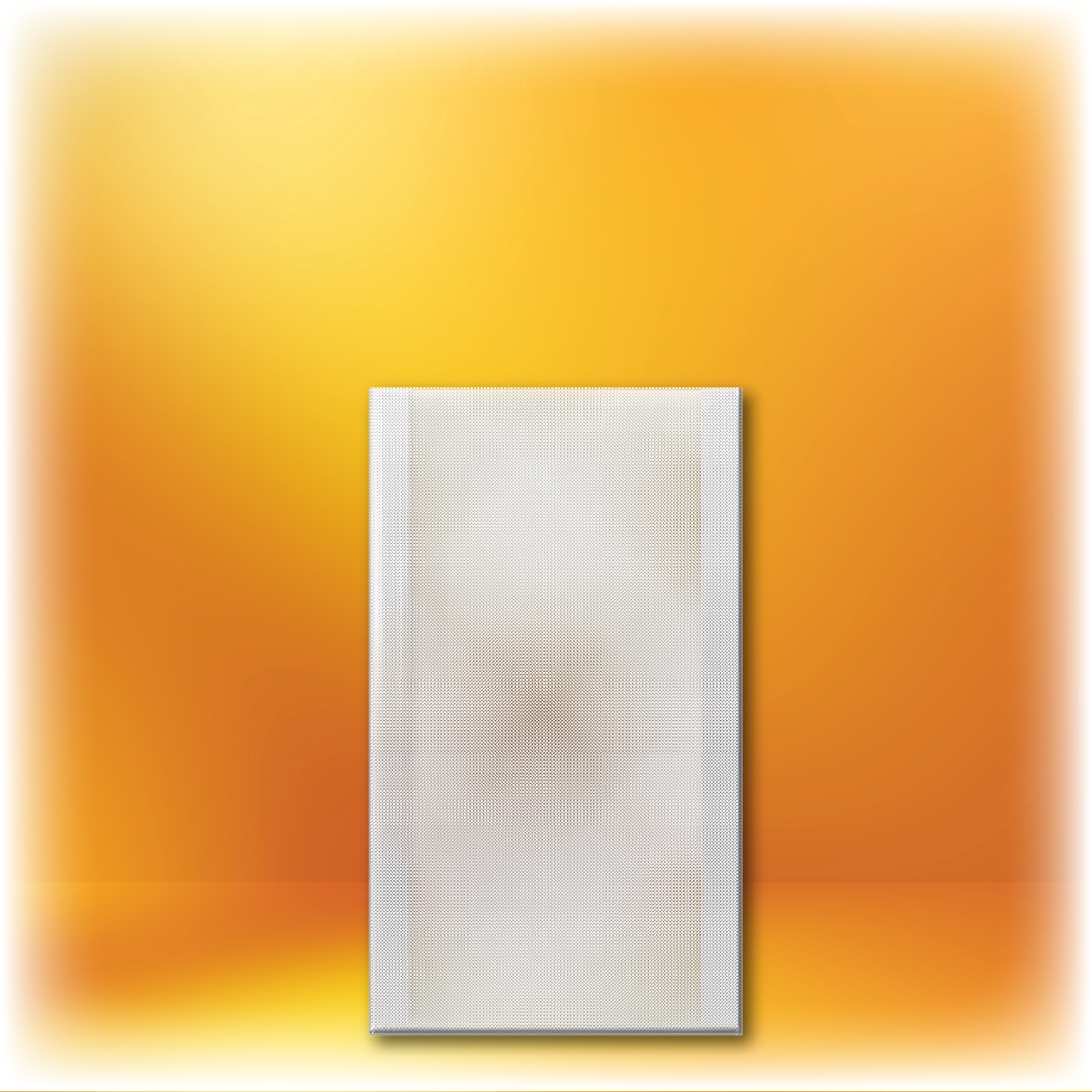

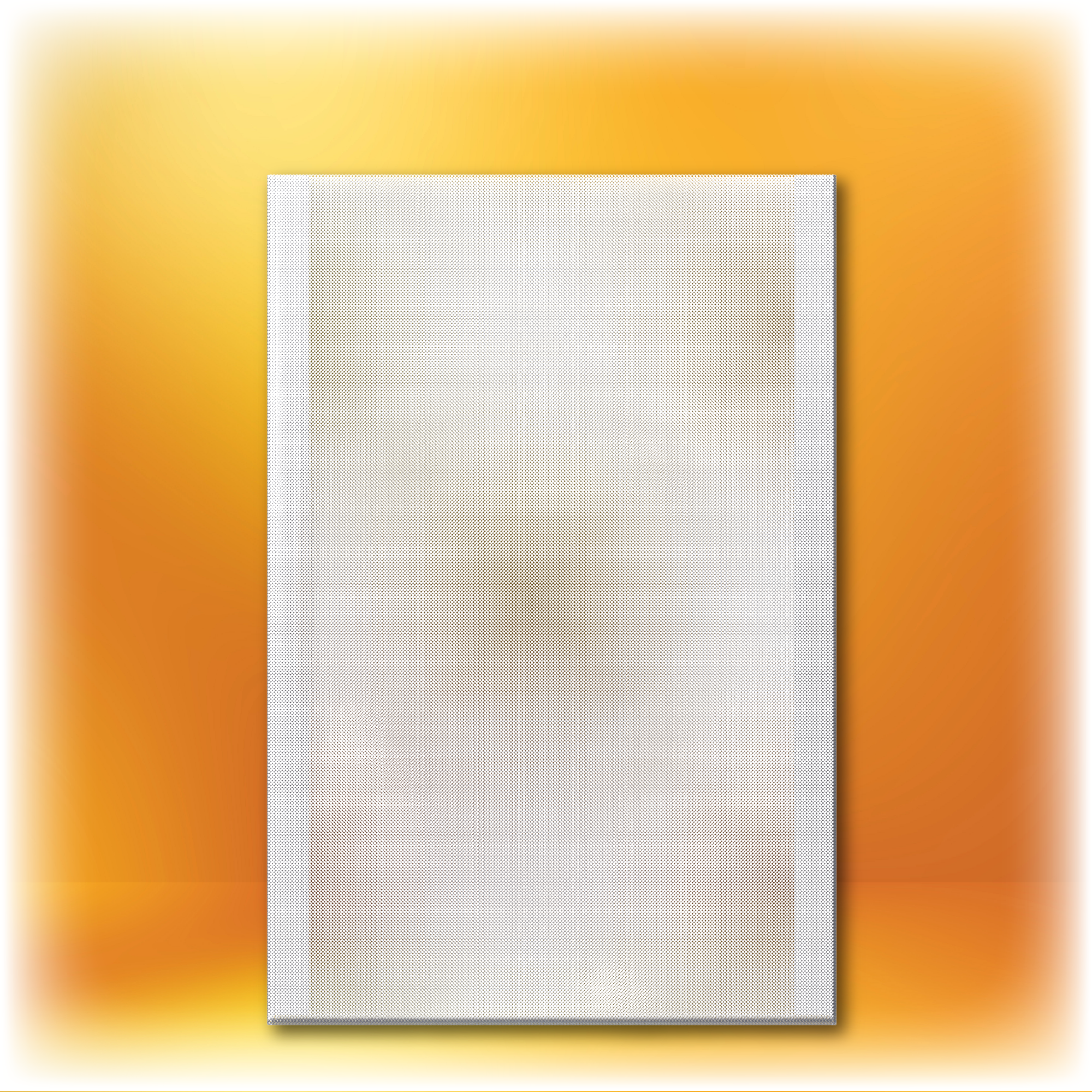

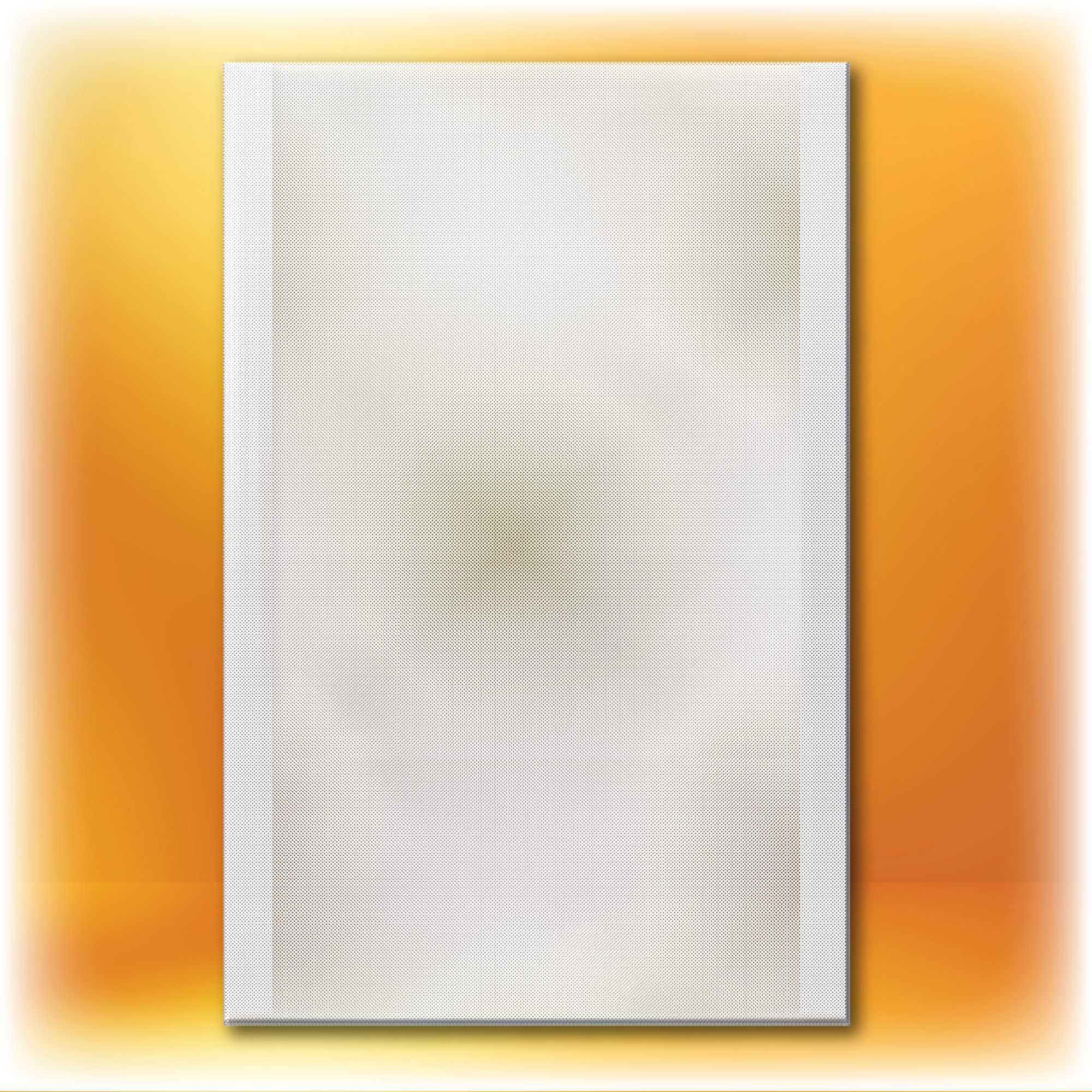

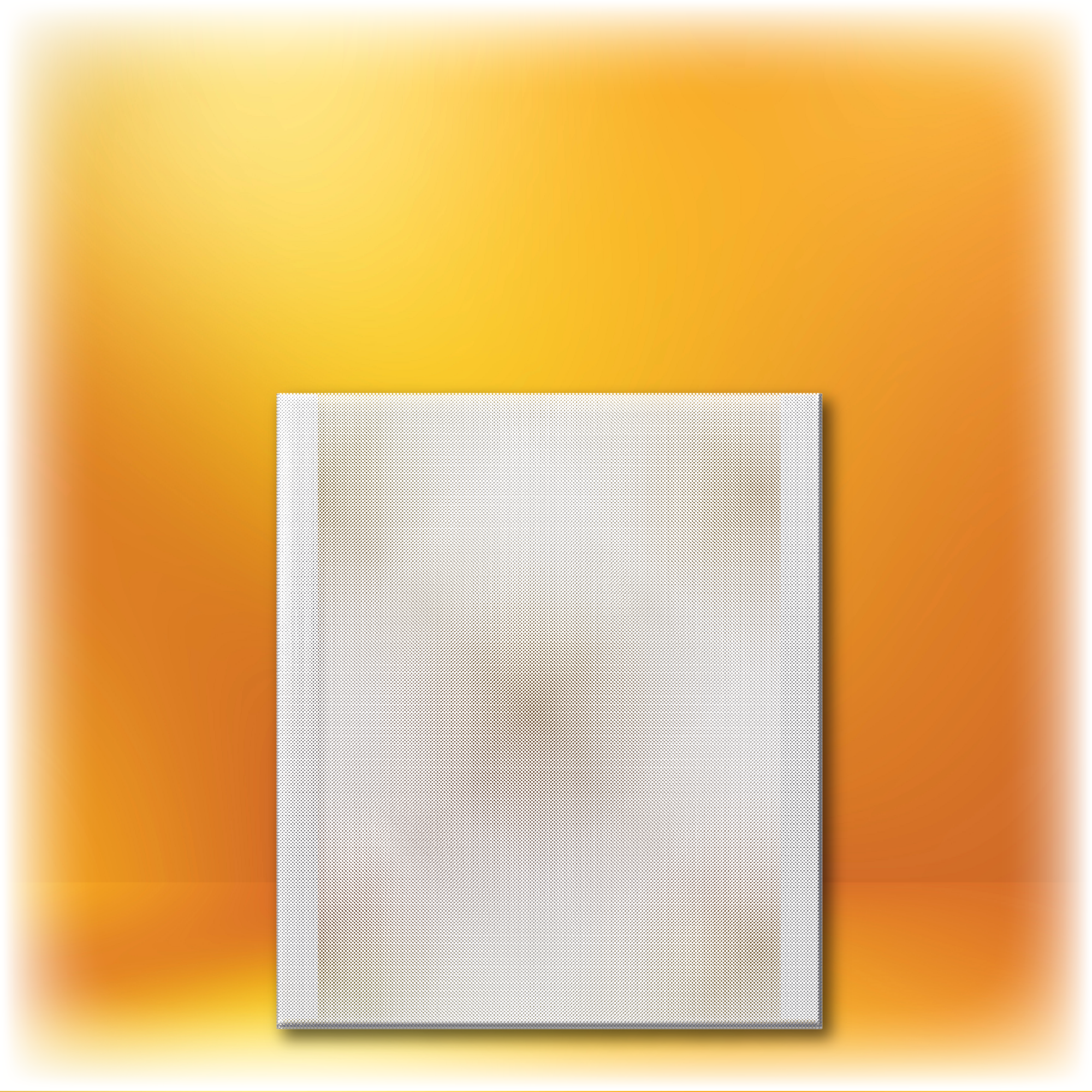

Nugsmasher extraction bags are specifically designed to work with the weight of fresh cured flower establishing the perfect surface area for a proper extraction and are designed to work together with our extraction machines and are labeled accordingly at:

Bag Size in Weight
  • 3.5 Gram
  • 7 Gram
  • 14 Gram

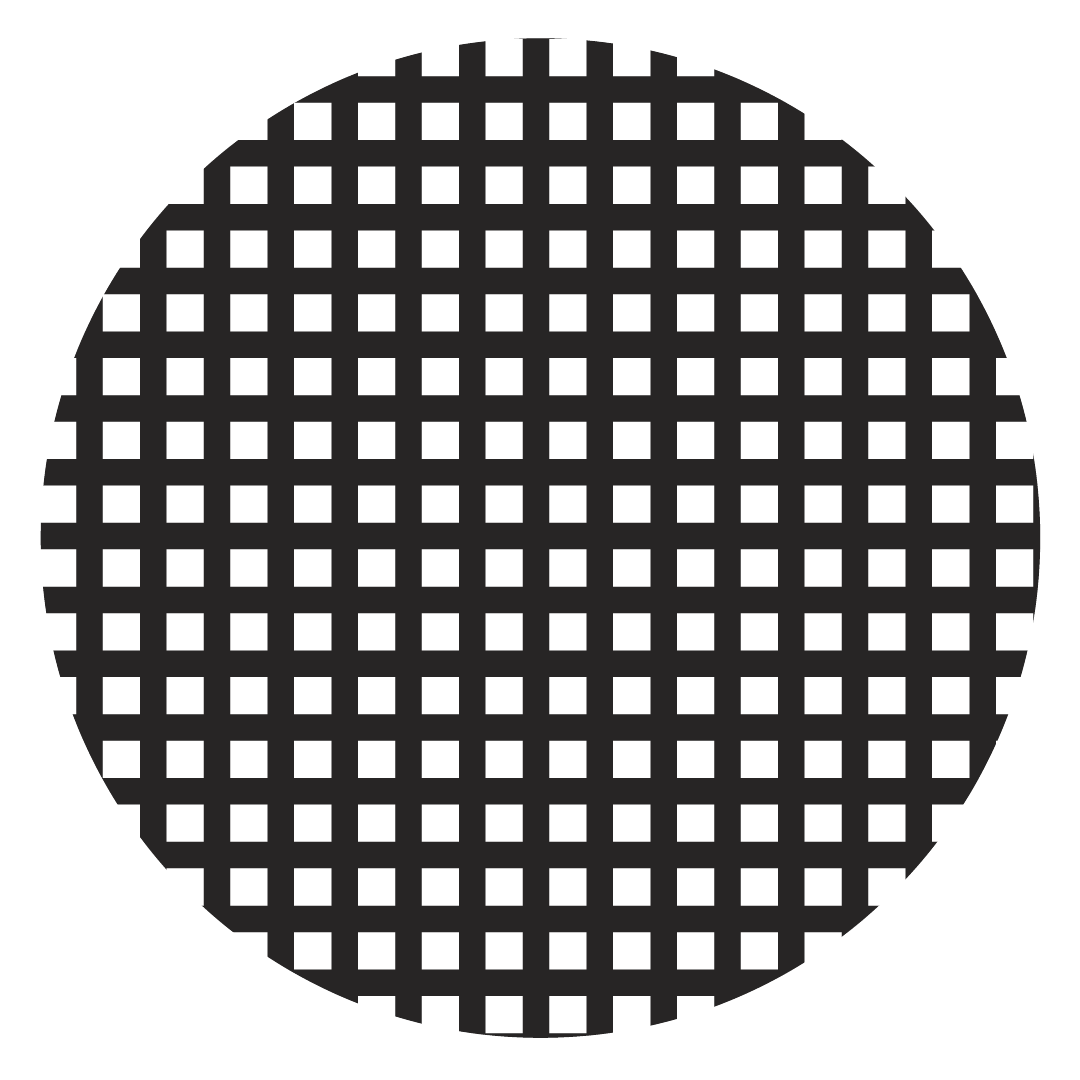

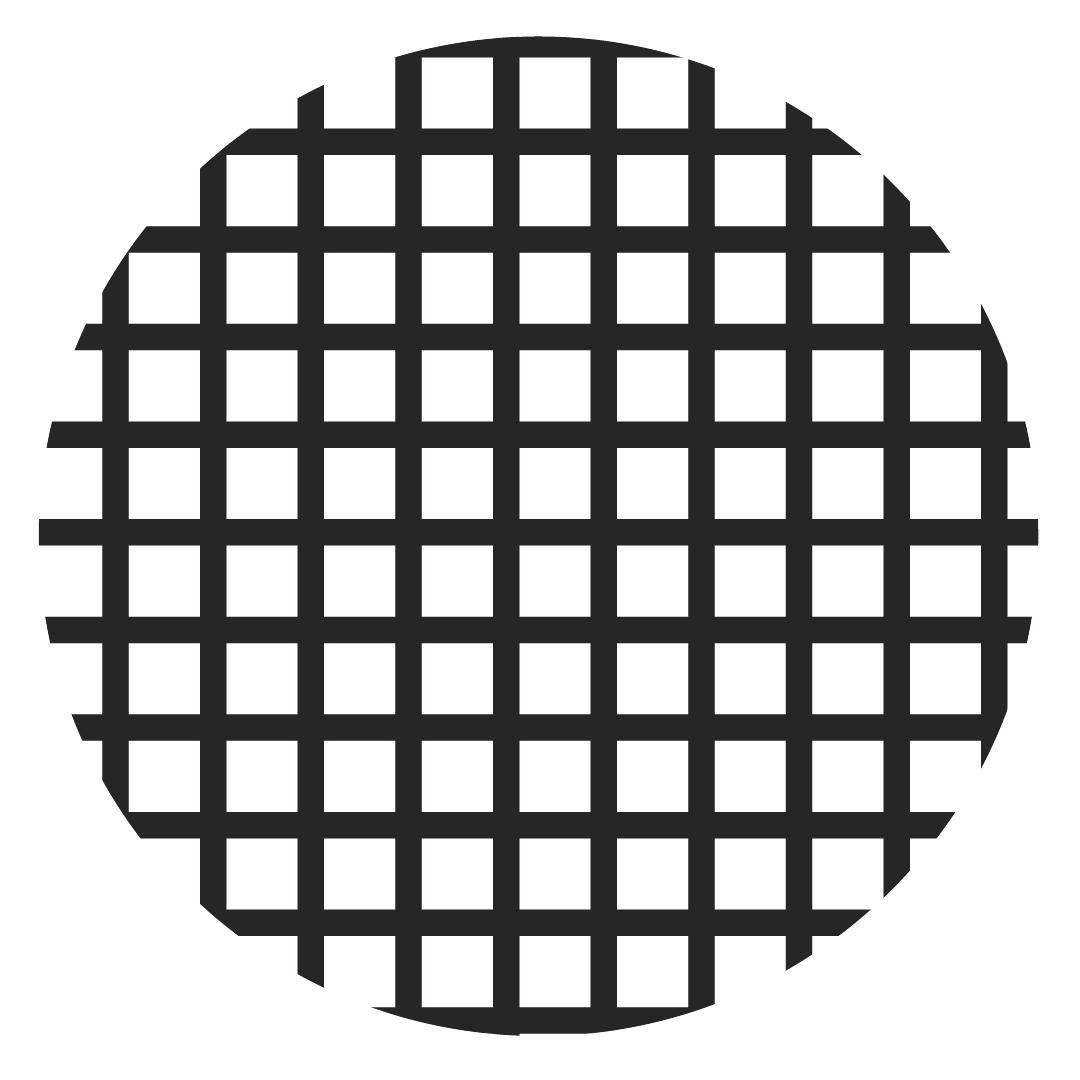

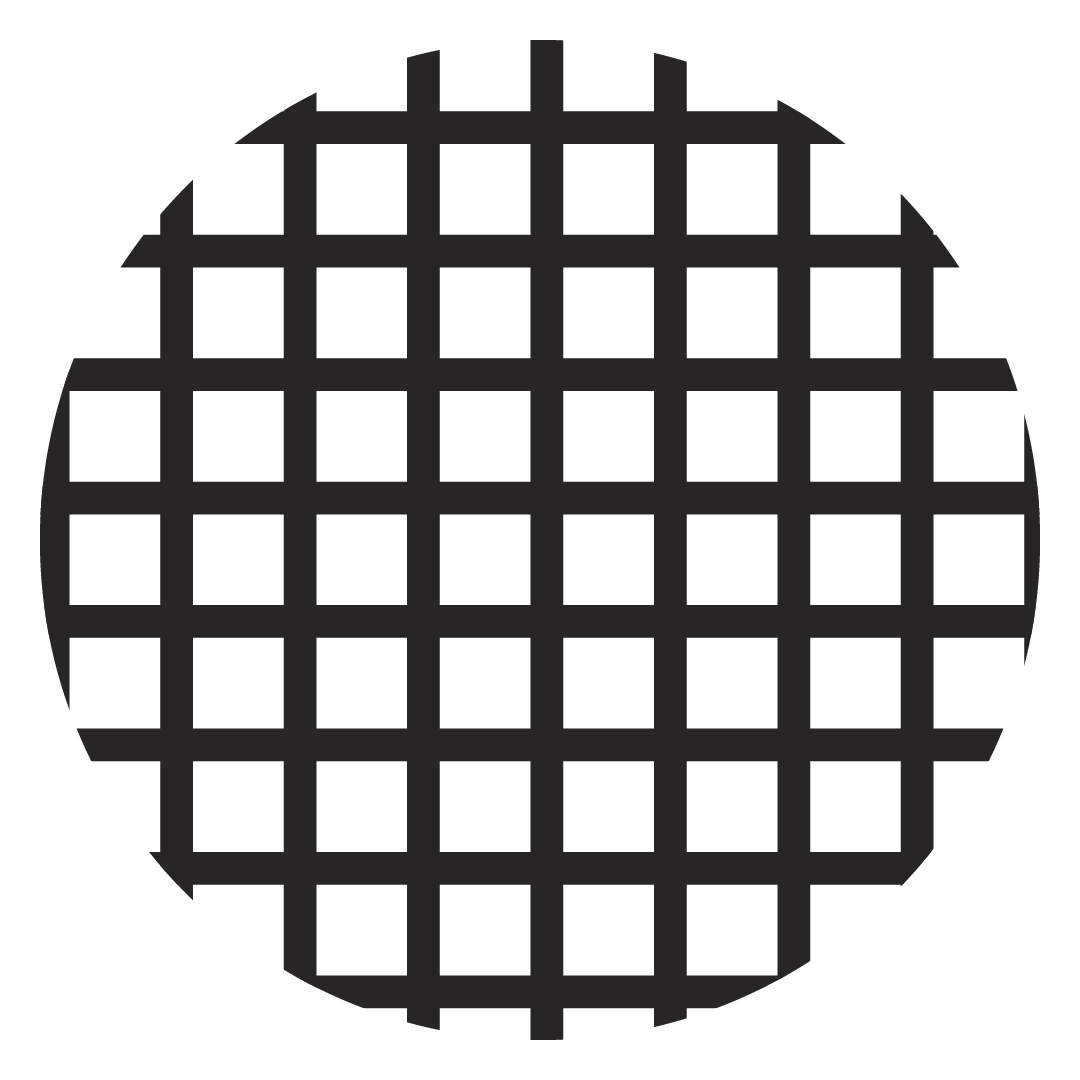

Bag Screen Size (Micron)
  • 160 Micron
  • 120 Micron
  • 90 Micron

Double back stitched

Hand Made in the USA

Collection Plates

Rosin Collection Plates made from T6 6061 aircraft grade aluminum is designed to fit easily in your freezer to chill down for hassle free collection of the rosin from the parchment paper (or other material used). It helps take previously "impossible to collect" rosin to a low enough temp to turn into tacky shatter in most cases allowing you to easily collect it with your collection tool of choice.


Two sizes avalible
  • Small 6x7”
  • Large 12x14”

Pre Press Molds

Pre Press Mold includes: Square Large 2"x1.40x1.40 Round Large 2"x1.55"DIA. Square Small 2"x.71"x.71" Round Small 2"x.80 DIA Sets includes male and female press set and bottom 3/4" thick male plug. Use this Pre Press Puck Maker to pre-press your material into compressed "pucks". Pre Press Puck Makers are perfect for use with our Extraction Bags.

*Pro Pre Press Molds are also avalible.

Dabcessories

Tool Holder

Keep your dab tools, caps and accessories organized all in one spot. Made from T6 6061 aircraft grade aluminum "Slick Finish" Stick resistant Powder-coated wrinkle finish.

Made In The USA.


eNail Kit

This is the e-Nail of choice from our team of connoisseurs. Our eNail Kit comes complete with Quartz Bowl and Case. Kit includes: 20mm Heater whip 5' long Heavy duty braided cord with Velcro strap. 6' 16 AWG Power cable with Velcro strap. 20mm Titanium Nail for Quartz Bowl universal male/female fit Titanium Carb cap that fits the Quartz Bowl *Quartz Insert is replaceable.



Silicone DAB Mat

Food grade silicone .090 thick all black with white print extra large 15.5x11 inches.

I want one!

…And why shouldn't you? A Nugsmasher rosin press is a truly smart purchase. Flexible enough for small personal use all the way up to high volume production, a Nugsmasher rosin press is your best choice for pressing rosin. Don't forget we build each unit in-house in Southern California and guarantee each one will perform for you for life!

We have Nugsmashers and Accessories in stock and ready to ship or available for pick up! If you're local to our shop in Corona, CA. you can arrange for a live demo during regular business hours. Just give us a call at 951.272.9800

Click Here to go to our products page!

Reviews

Don’t just take our word for it... See what actual owners of the NugSmasher are saying! We have received nothing but positive reviews!

The NugSmasher has definately been a great tool for our team. Production is up dramatically over other presses we own! We purchased a few extra alignment racks which allows us to move through material super fast with a 2 person team!

Elite Extractions Crew, Long Beach, CA

These guys really knocked it out of the park with this one. Best bang for your buck by far! I looked at several presses before buying this one. Nothing quite compares with it and its way under priced vs other larger presses.

J. Benson - Los Angeles, CA

Making the transition from BHO was a hard decision at first, but using the NugSmasher makes it a no brainer! I can process just as much material as with BHO, but its ready same day vs waiting 3 days for purging! Awesome!

D. Flores - Colorado Springs, CO

faq

Got questions? We’ve got answers. If you have some other questions, feel free to send us an email to contact@nugsmasher.com

What is Rosin? How is it made?

Rosin is a solventless extraction made through the mechanical process of applying heat and pressure to "press" out the terpene and cannabinoid rich resin from cured flower or hash. This process occurs near instantaneously and requires virtually no professional expertise in the field of botanical extractions. Rosin tech uses heat to melt the glandular domes of the trichrome off of the base material. This resin rich sap will then reconstitute on the parchment paper, ready for collection. After scraping the parchment paper, the waxy residue collected will be clean and ready to dab.

How much pressure do I need?

The pressure needed to extract Rosin from your starting material will vary depending on the following factors: Freshness, Heat Applied, Amount of Material, Type of Material (Cured Flowers, Dry Sift, Bubble, etc). As a general guideline, the more heat you apply, the less pressure you will need (to a certain extent). From our experience, many strains will press very nicely at around 1000 - 1500 psi per inch of material being pressed in the lower temp range of 190 - 215 degrees.

How much Rosin can I expect from my material?

This is another question we get often, but cannot ever provide an exact answer. Basically the term "Garbage in, Garbage out" is a FACT with pressing. Rosin will typically taste very much like your starting material smells so using the best material available is always recommended. We have seen results as low as 5.5% with low quality material and have also seen 31%+ with Grade "A" material. Your best bet is to press a couple of .8g nugs to see what you can expect from your material before loading your extraction bags.

What bags do I need?

Nugsmasher extraction bags are recommended for optimal yield and clean quality rosin. Our bags are hand-made in the USA and are specifically designed to work with the weight of fresh cured flower together with our extraction machines and are labeled accordingly at: 3.5 g, 7 g and 14 g this assumes the bags are loaded (BTS) or bottle/barrel-tech style (upright so that you end up with the round coin like puck once fully pressed). This perfected method allows you the ability to put the proper weight of flower into the bag and get a consistent extraction every time. The reason for this is that it allows for the proper pounds per square inch, pressure (PSI) on your product and eliminates the guess work.

3.5g = 1.5" Diameter = 1.77” in surface area
7g = 2"-2.2”Diameter= 3.14” in surface area
14g=2.4"-2.7"Diameter= 4.91” in surface area

We prefer to use 160 micron for fresh flower, as flower dries we go down in micron screen size (for dry flower use 90 micron). NOTE: As the micron gets smaller the diameter get slightly larger. example: 90 micron is about 5% larger at the end of your extraction.
